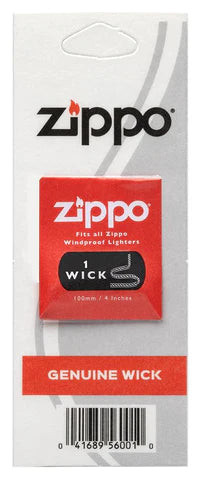

Zippo 火機棉芯 wick

Zippo’s genuine wick will keep your windproof lighter working at optimum performance. Comes in a sealed packaged.

• 1 wick per package
• Fits all Zippo windproof lighters
• Measurements: 100mm (4 inches)

Replacing the wick

• Replace when the wick in your Zippo windproof lighter becomes black from carbon
• To replace the wick pull the wick up with pliers until clean wick appears
• Cut it off even with top of chimney and straighten the wick in the chimney

How to use

Step 1:

首先從殼體中取出內部單元（插入件）。

First remove the insert from the lighter case.

Step 2:

翻轉並用一字起子或硬幣擰下火石彈簧。慢慢取下彈簧。

小心: 彈簧處於繃緊狀態，因此請確保彈簧不會飛走。

Using a small screw driver or a coin, slowly remove the spring. The spring has tension so be sure it doesn't fly away.

Step 3:

再次將機芯向上翻轉，輕輕敲機芯，取出剩餘的打火石（如果有的話）。

Remove the remaining piece of flint by gently tapping the insert against a hard surface. Once it is removed, use an unfolded paper clip to remove any stubborn flint slivers or residue from the flint tube.

Step 4:

 將新打火石插入黃銅管中。務必不要將黃銅尖端混淆在火石彈簧的末端。即使它看起來像打火石，但它不是打火石。

Insert a new flint into the flint tube.

Step 5:


旋入打火石彈簧，順時針旋轉直到擰緊。

Replace the flint spring and turn clockwise until tight. If the screw isn't fully tightened teh lid will not close.

Step 6

安裝新打火石後，轉動幾次後才會比較順暢。

提示：您可以在氈墊下,留幾顆打火石以備使用。

After fully tightening teh spring you may want to keep extra flints under the felt pad so you always has them handy for future use.

Step 7

放回入機殼

Put the insert back into the lighter case and make sure the lid can fully close. if the flint wheel binds, turn the wheel backwards a few times.
