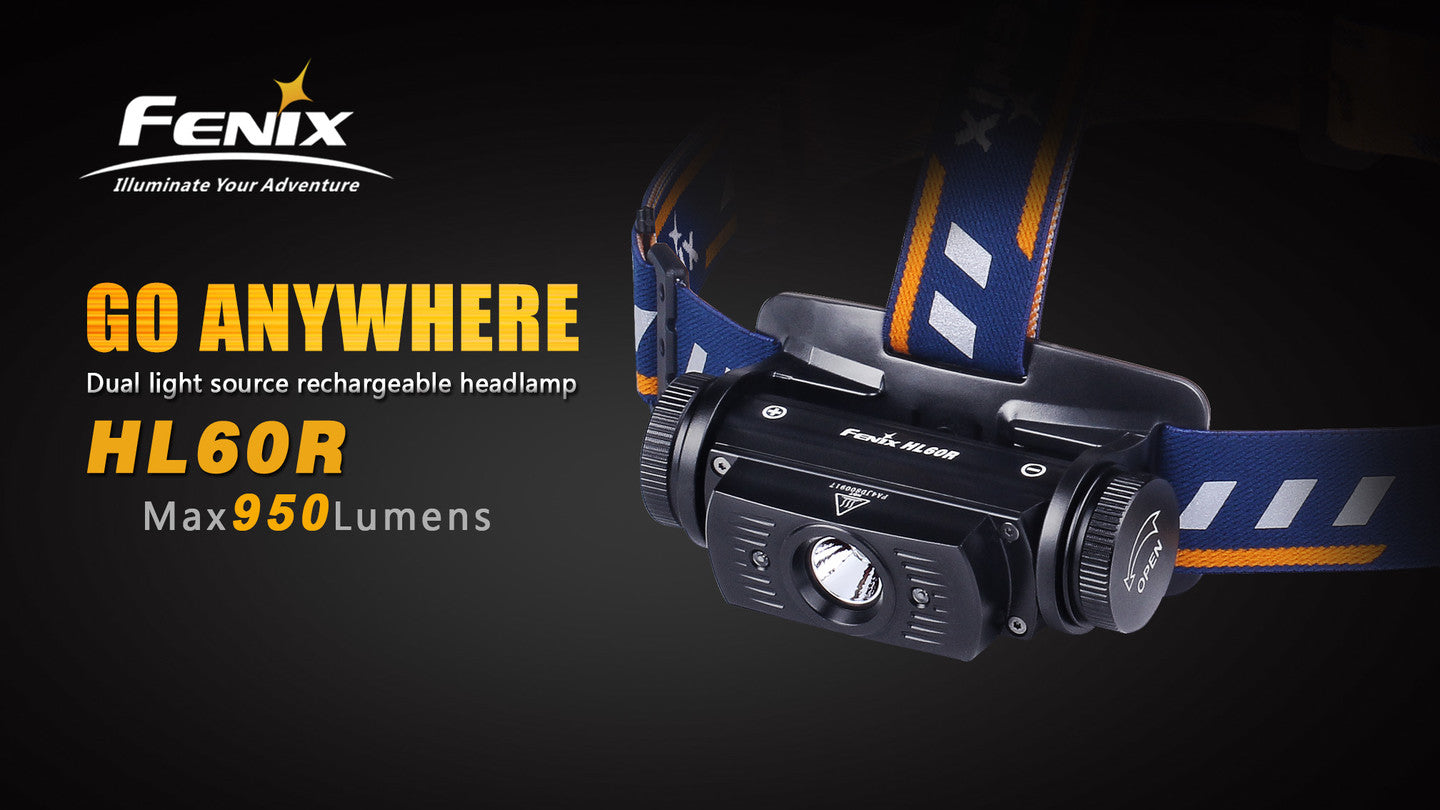

Fenix HL60R USB Rechargeable Headlamp | 950 Lumens | Neutral White + Red Light

Fenix HL60R USB Rechargeable Headlamp | 950 Lumens | Neutral White + Red Light

HK$680.00
HK$784.00 HK$680.00
Sale Sold out
Shipping calculated at checkout.

Fenix HL60R USB Rechargeable Headlamp｜950 Lumens｜Up to 116m｜Up to 100 Hours｜Micro-USB Charging｜Neutral White + Red Light｜Submersible to 2m

Rechargeable headlamp／outdoor headlamp／work headlamp: neutral white light improves color rendering, plus a red reading light—ideal for hiking, camping, and night work.
Max Output
950 Lumens
Max Beam Distance
116 m (381 ft)
Max Runtime
100 Hours
Power
1×18650／2×CR123A
Charging
Micro-USB
Protection

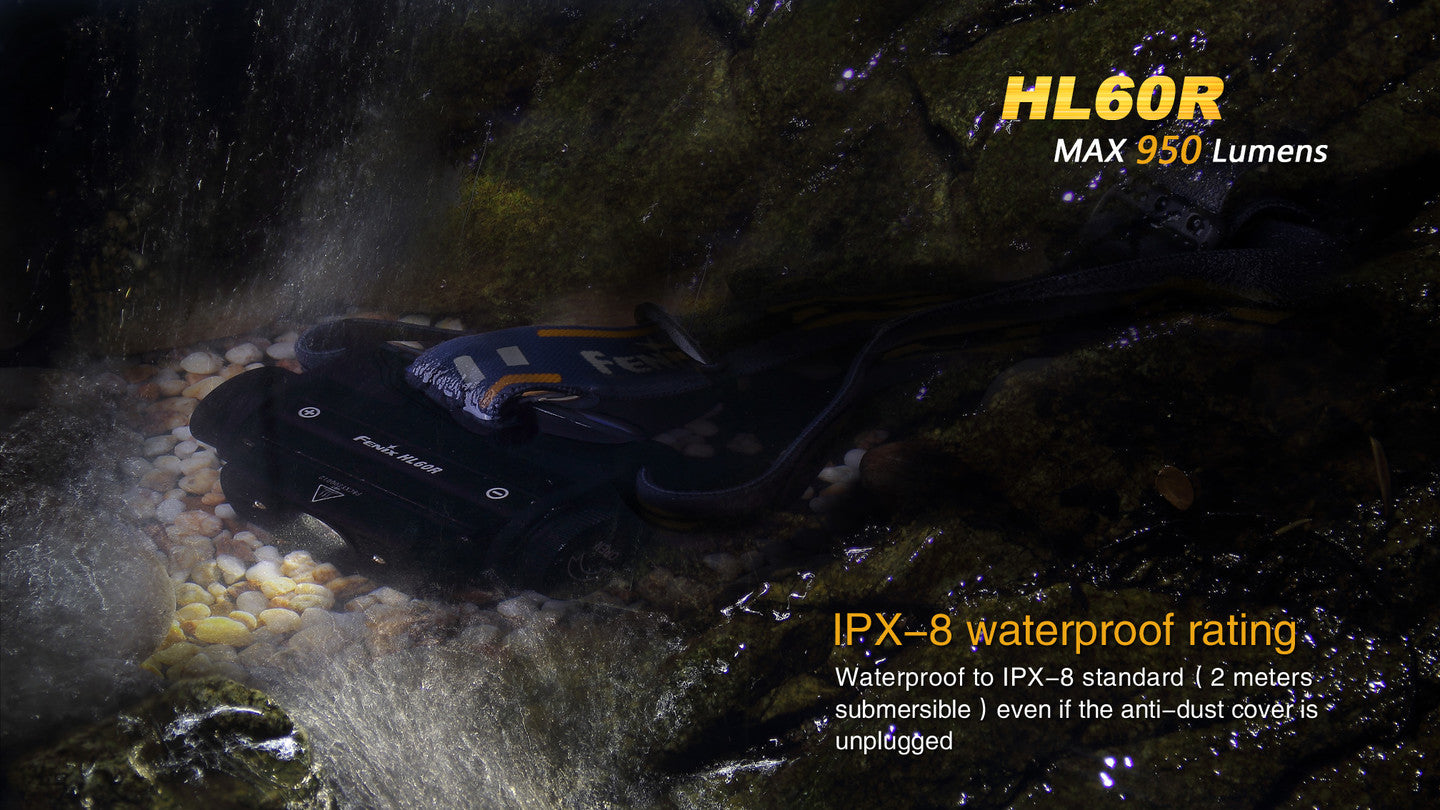

Submersible to 2m

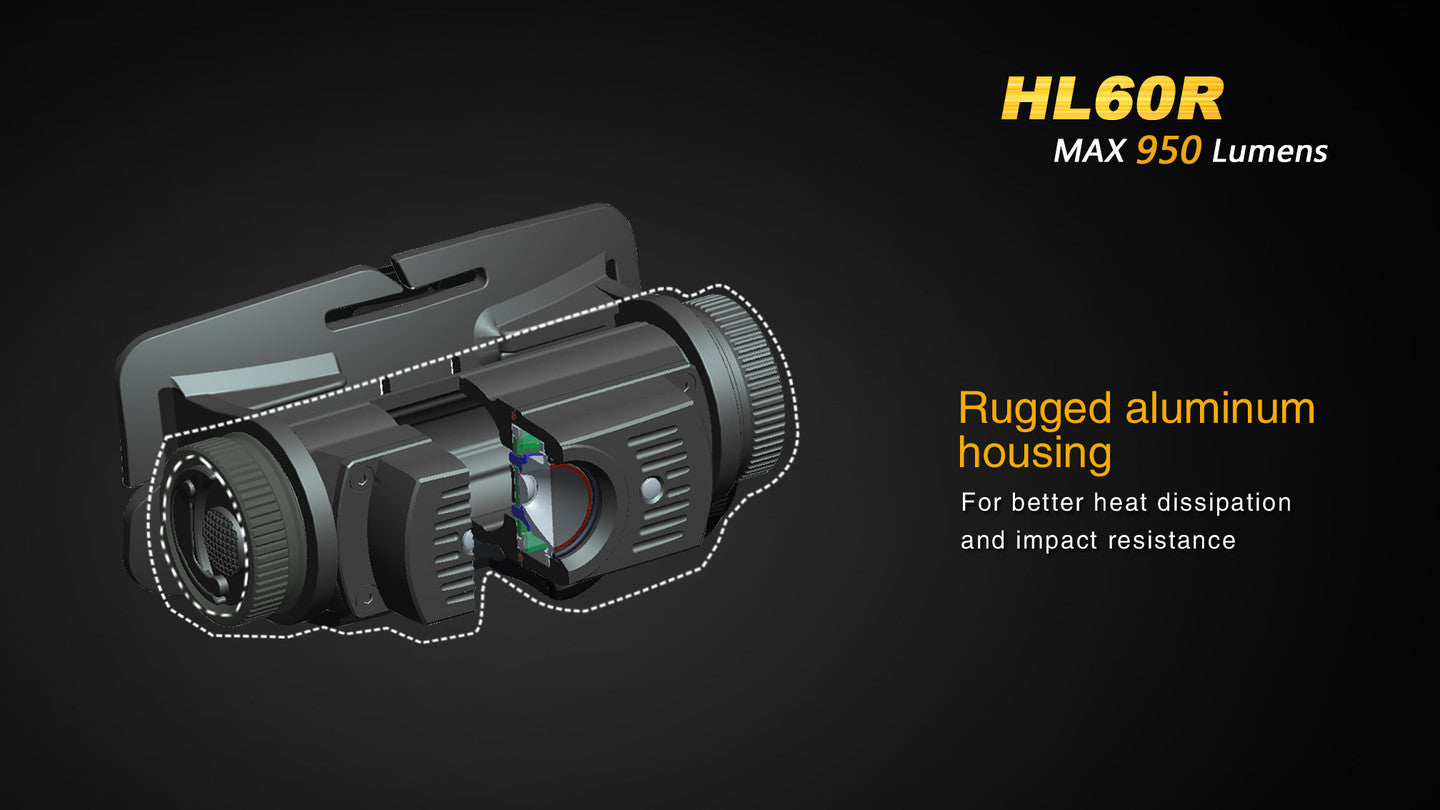

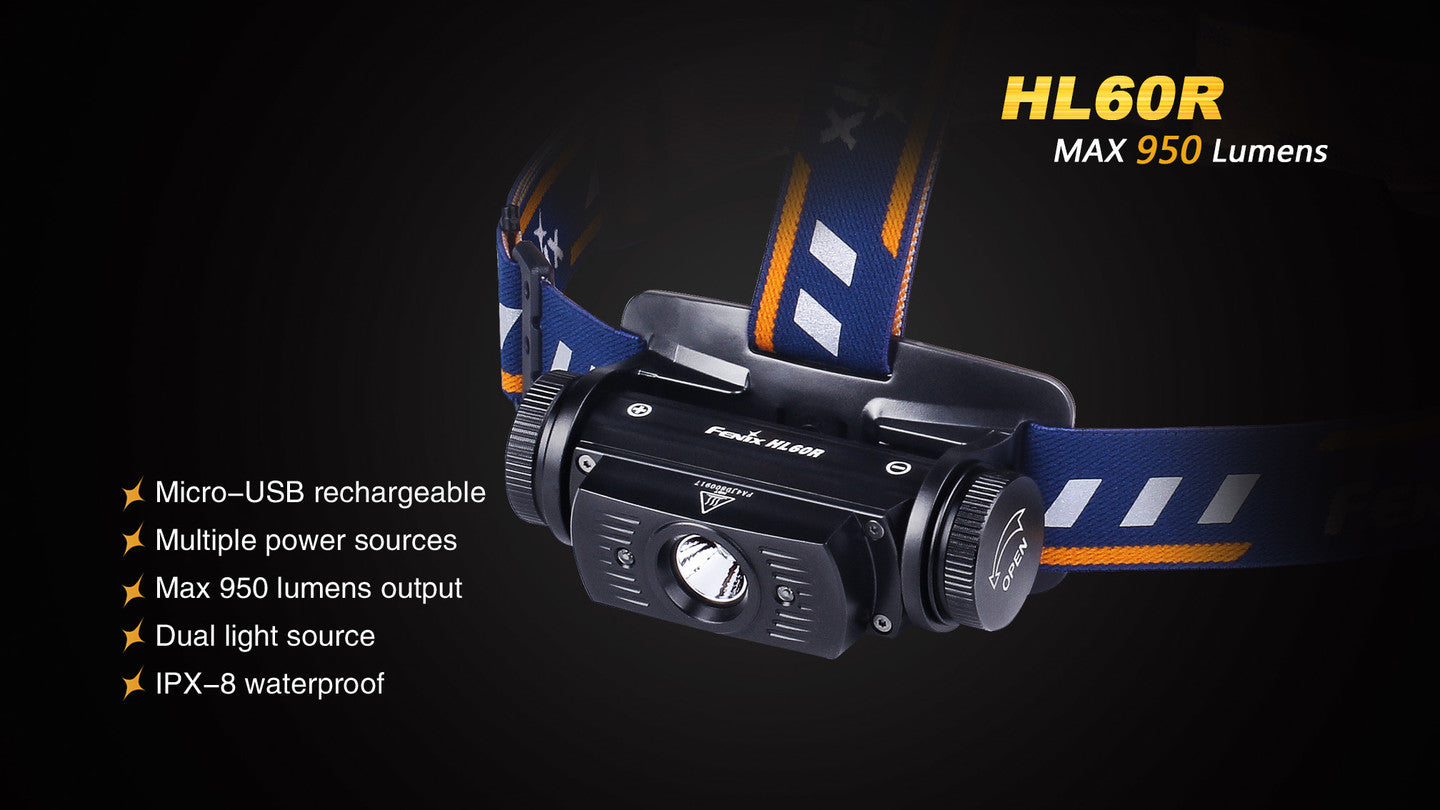

Fenix HL60R is built as an all-season headlamp with an all-metal housing and premium aluminum body, featuring Micro-USB charging for easy top-ups on the go. It delivers up to 950 lumens with a max beam distance of 116 m (381 ft), and can run up to 100 hours on a single rechargeable 18650 Li-ion battery.

Lighting uses neutral white for improved color rendering, plus a dedicated red reading light. The side switch offers one-button control and mode changes. It is also rated for use underwater up to 2 meters, making it suitable for outdoor activities and night work.

Key Features

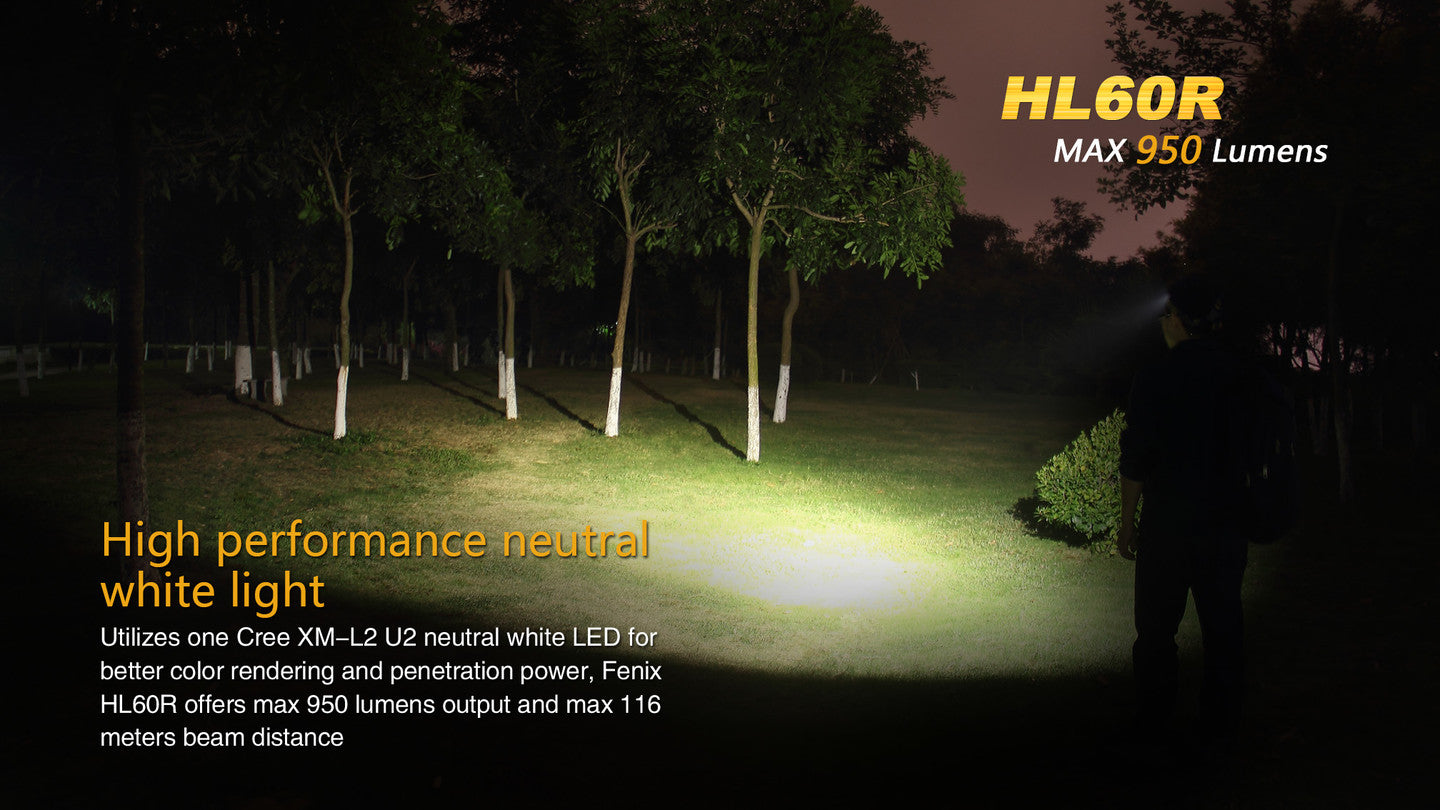

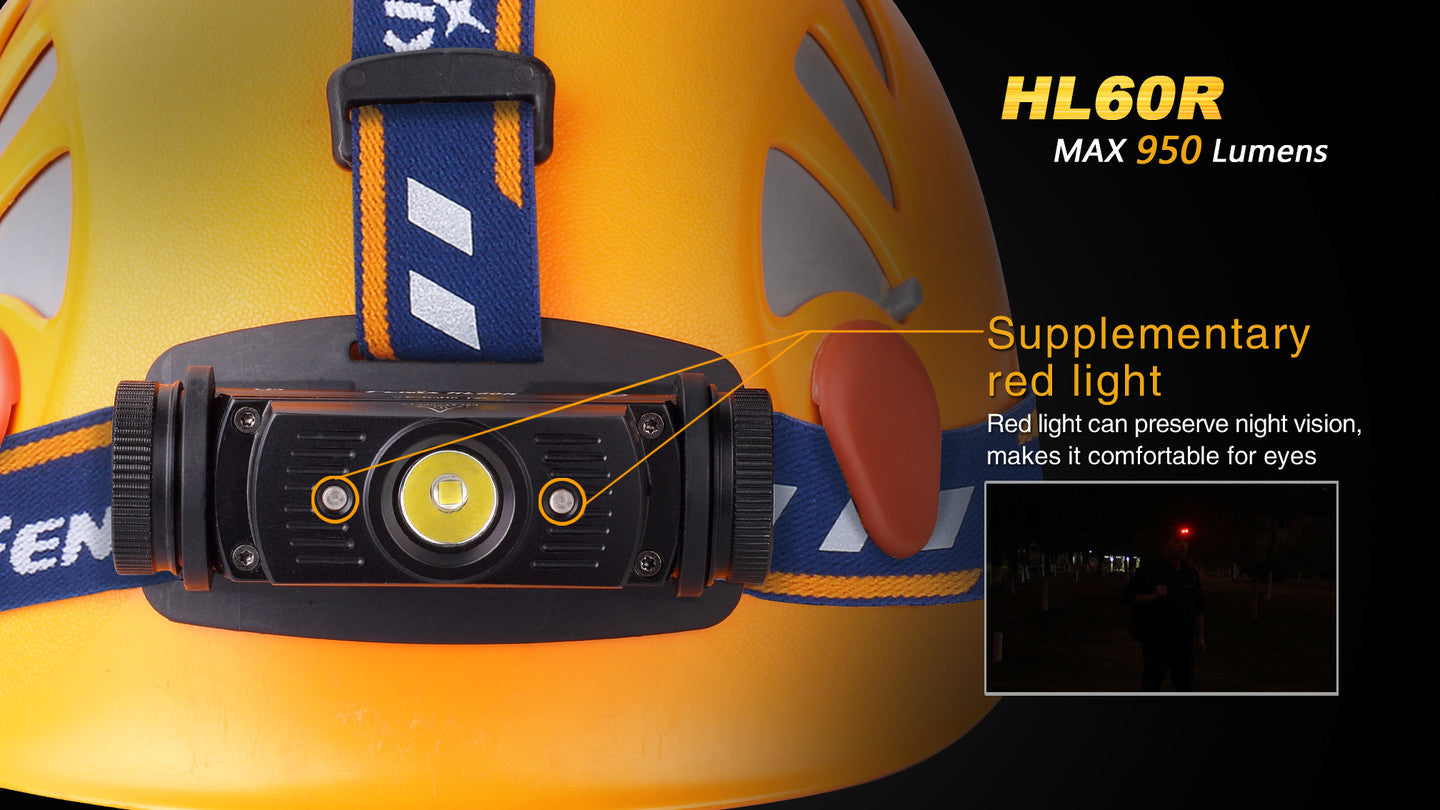

  • Neutral White + Red Reading Light: Lighting and Close-Range Reading in One
    Neutral white helps improve color rendering, and a red reading light mode is included.
  • 5 White-Light Levels + Red Light: One-Button Side Switch Control
    With the light on, single-click the side switch to cycle: Turbo→Red light→Eco→Low→Mid→High.

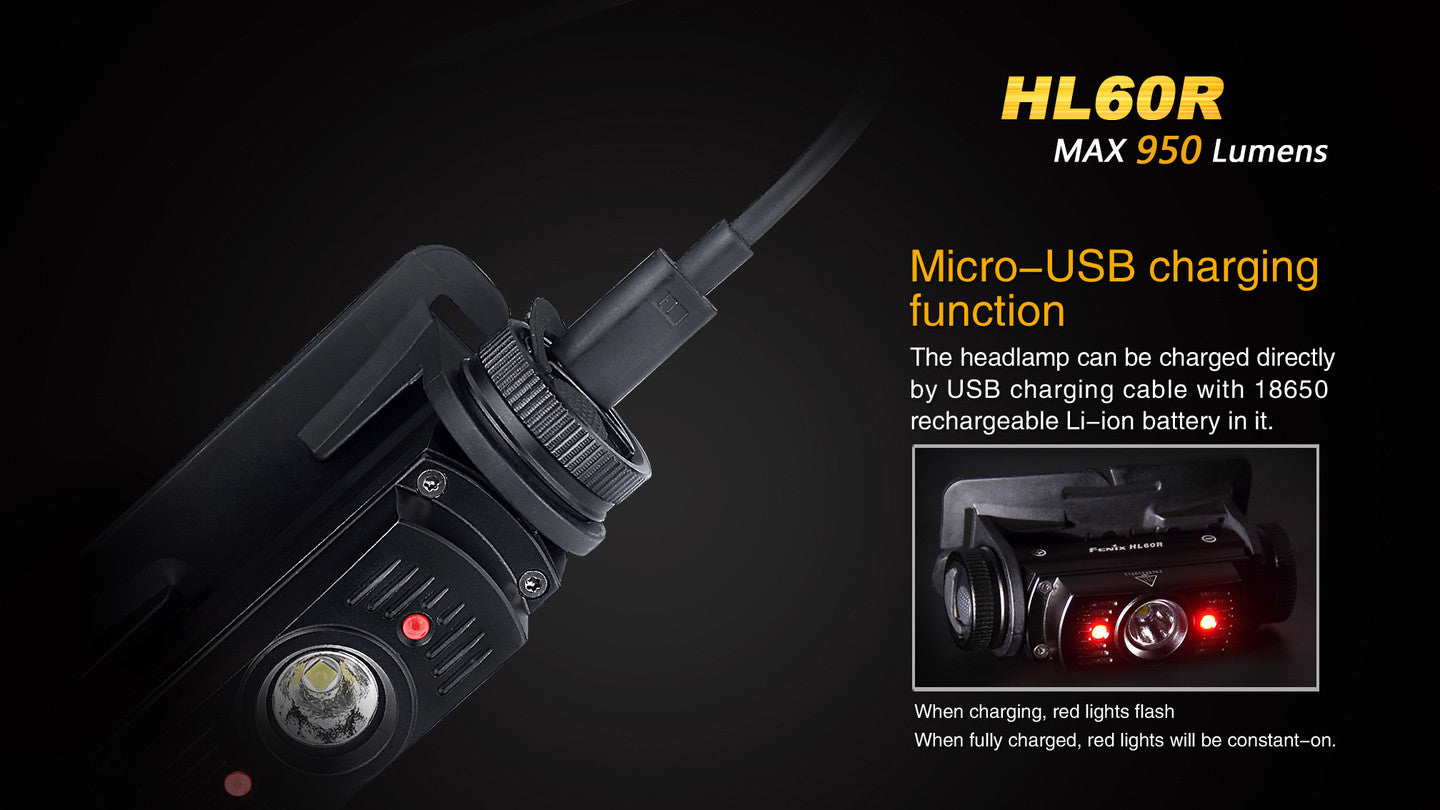

  • Micro-USB Charging: Charge by Opening the Dust Cover
    Charging status is shown by two red LEDs, and it can be topped up via any USB power source.
  • Emitter & Lifespan: Luminus SST40
    Luminus SST40 (approx. 50,000-hour lifespan).
  • Stable Output & Safety Design: Constant-Current Regulation + Reverse Polarity Protection
    Digitally regulated constant-current output maintains brightness; reverse polarity protection helps prevent incorrect battery installation.
  • Body & Lens: Wear-Resistant Finish + Anti-Reflective Coating
    Premium aluminum body; Premium Type III hard-anodized anti-abrasive finish; reinforced ultra-clear glass lens with anti-reflective coating.

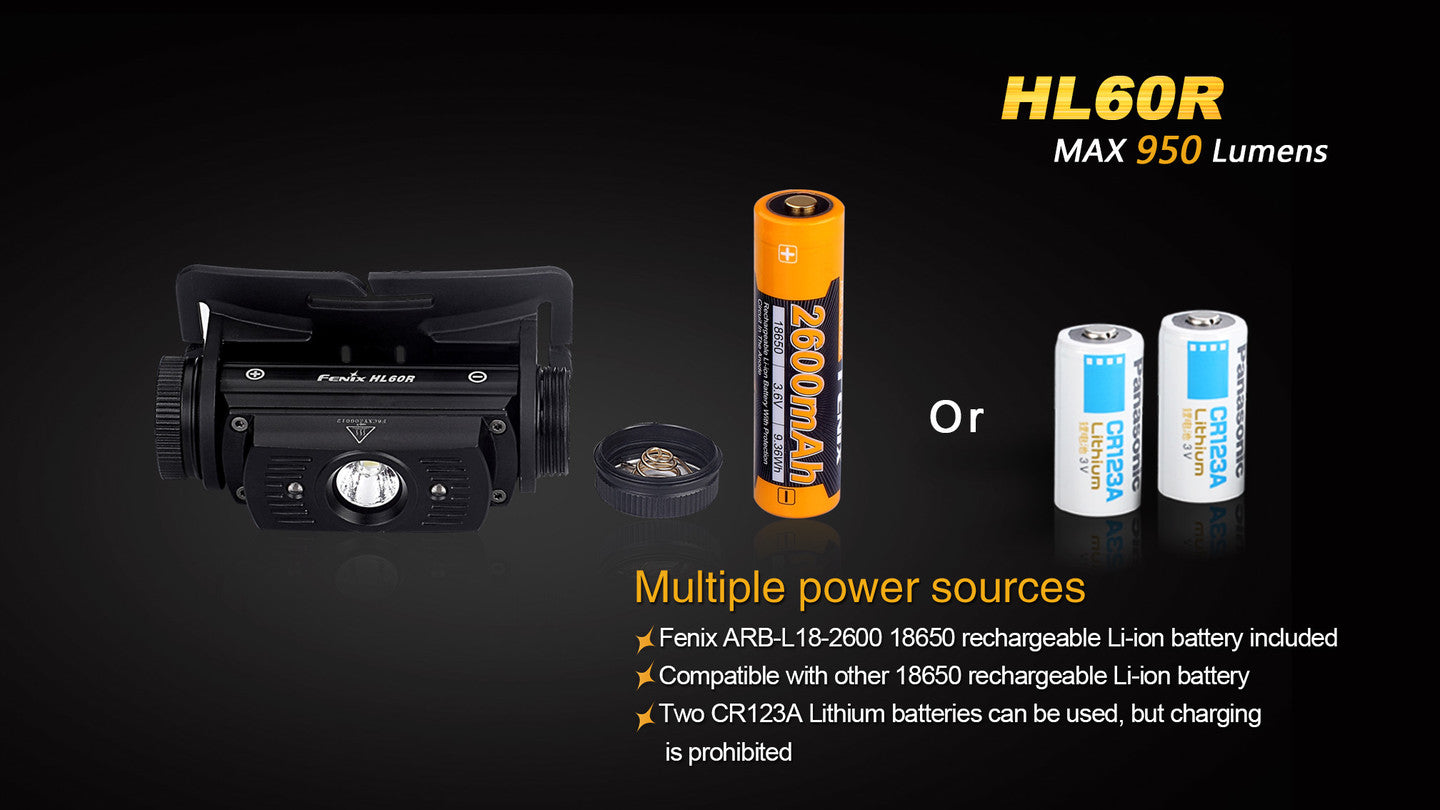

  • Flexible Power Options: 1×18650 or 2×CR123A
    Runs on 1×18650 Li-ion battery, or 2×CR123A batteries.
Mode Overview
Type Mode / Level Cycle Order
White Light Turbo / High / Mid / Low / Eco (5 levels) Turbo→Red light→Eco→Low→Mid→High (cycle)
Red Light Red light

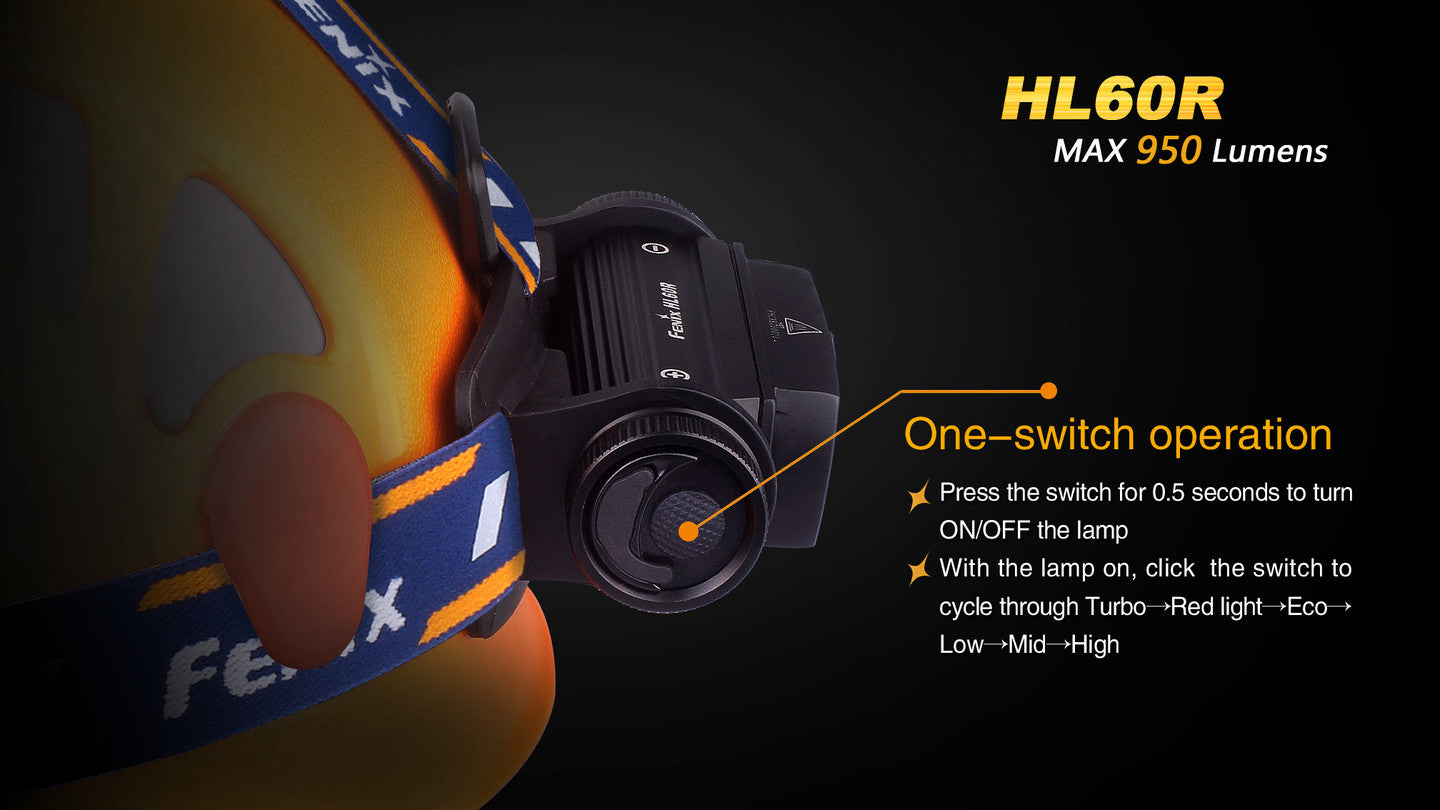

Quick Operation Guide
On / Off: Press and hold the side switch for 0.5s
Mode switching: With the light on, single-click to cycle Turbo→Red light→Eco→Low→Mid→High
Memory function: Automatically remembers the last-used brightness level; next power-on returns to that level
Battery check: With the light off, single-click the side switch; indicator stays on for 3 seconds
Low-battery warning: When battery is below 20%, the two red LEDs flash at 1Hz
Battery replacement: Unscrew the battery cap and install the battery following the correct positive (+) direction

Charging & Battery Indicators

Item Details

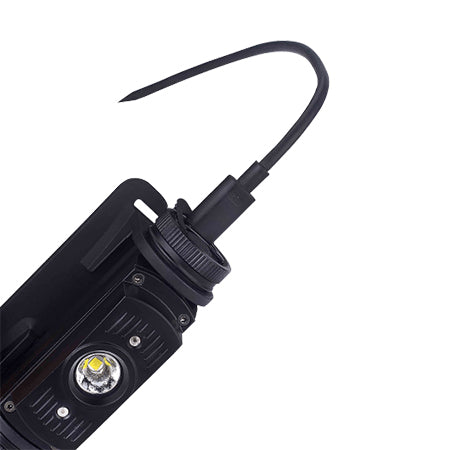

How to Charge Connect the USB end to any USB power source → open the dust cover → plug the Micro-USB end into the headlamp charging port.
During charging, the two red LEDs flash together at 0.5Hz; when fully charged, the two red LEDs stay on.
Charging Time Approx. 4 hours to fully charge a Fenix ARB-L18-2600 18650 rechargeable Li-ion battery.
Top-Up Charging for Storage For stored headlamps, it’s recommended to top up the battery once every four months to maintain battery performance.

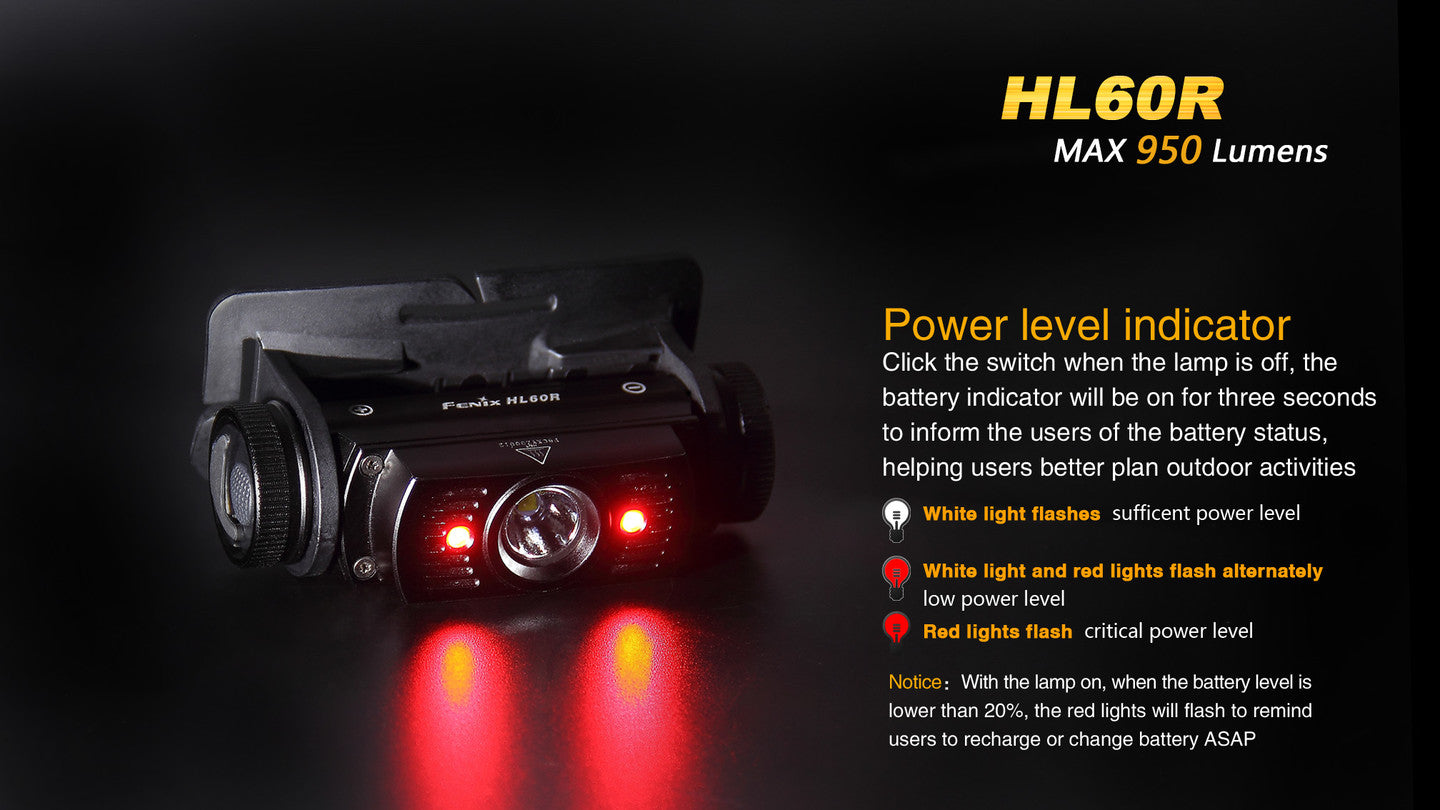

Battery Indicator (Light Off) With the light off, single-click the side switch; indicator lasts 3 seconds:
・White LED flashing: above 70%
・White LED and two red LEDs alternate flashing: 30%–70%
・Two red LEDs flashing: below 30%
Low-Voltage Warning (Light On) When battery is below 20%, the two red LEDs flash at 1Hz:
・In red-light mode: the two red LEDs flash as a warning
・In white-light mode: the two red LEDs flash together while the white light is on
When the warning appears, please recharge or replace the battery as soon as possible.

FAQ

What batteries does the HL60R use?
Compatible with 1×18650 Li-ion battery or 2×CR123A batteries. Includes a 2600mAh battery.
How do I switch brightness levels and red light?
With the light on, single-click the side switch to cycle: Turbo→Red light→Eco→Low→Mid→High.
How do I check remaining battery level?
With the light off, single-click the side switch. The indicator lights for 3 seconds and shows the battery range via white/red LED flashing patterns.
How long does charging take?
Approx. 4 hours to fully charge a Fenix ARB-L18-2600 18650 rechargeable Li-ion battery; when fully charged, the two red LEDs stay on.

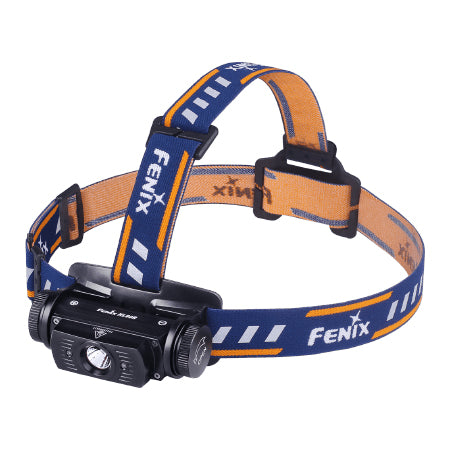

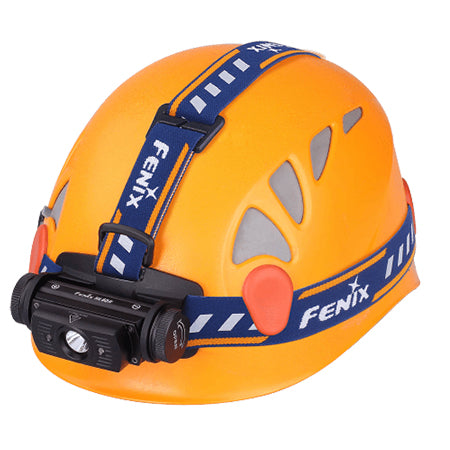

How do I adjust and secure the headband?
The headband comes pre-assembled; slide the buckle to adjust length.
Attach the headband to the headlamp bracket first, then connect the headband to the top strap holder to improve stability.

Suggested Use Cases

  • Hiking / camping: 950 lumens and a 116m beam distance with up to 100 hours runtime—great for extended use.
  • Night work / maintenance: One-handed side switch operation, plus red light for close-range reading or task lighting.
  • All-season everyday backup: All-metal housing and submersible-to-2m capability for different weather conditions.
  • Yard / home use: Micro-USB charging makes daily top-ups and battery management easier.

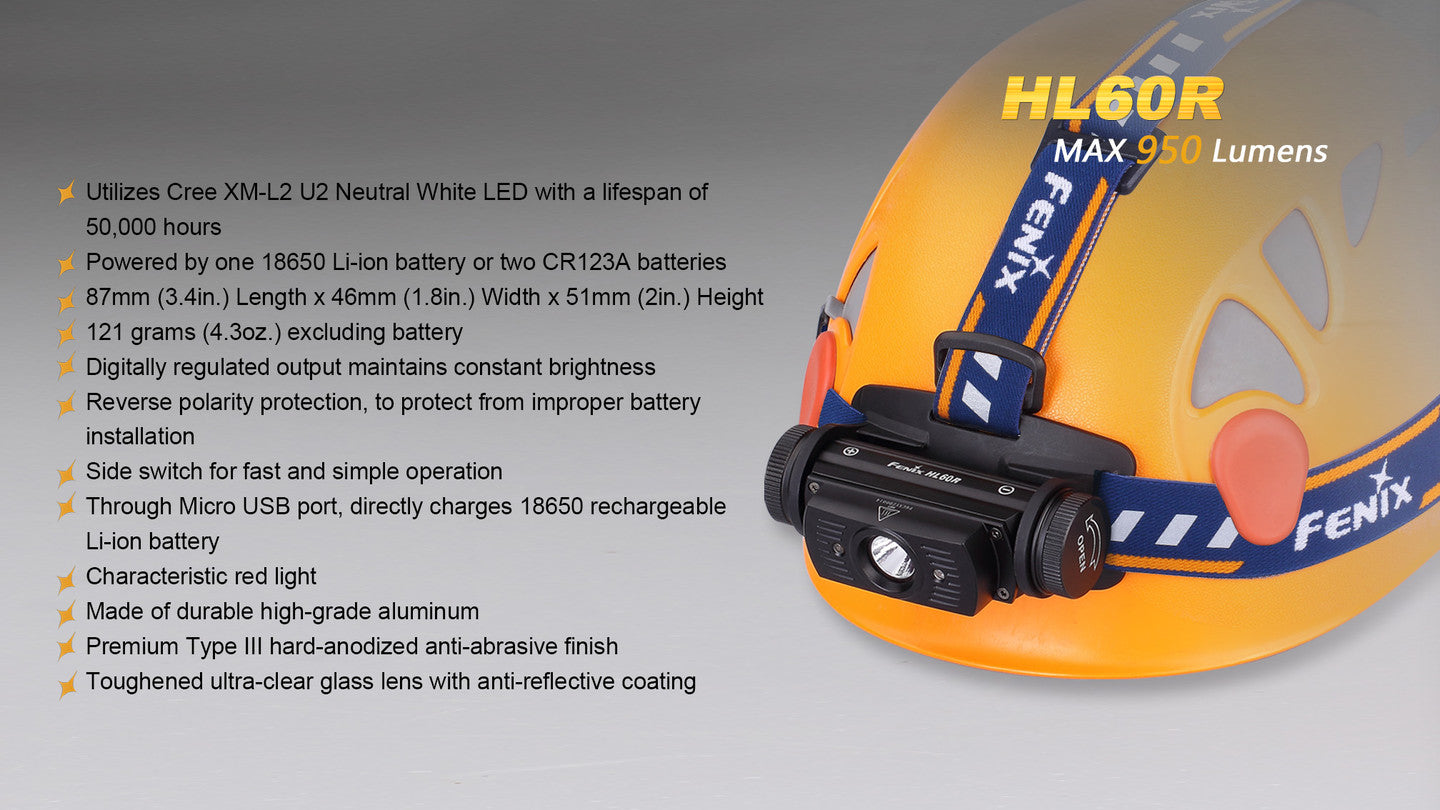

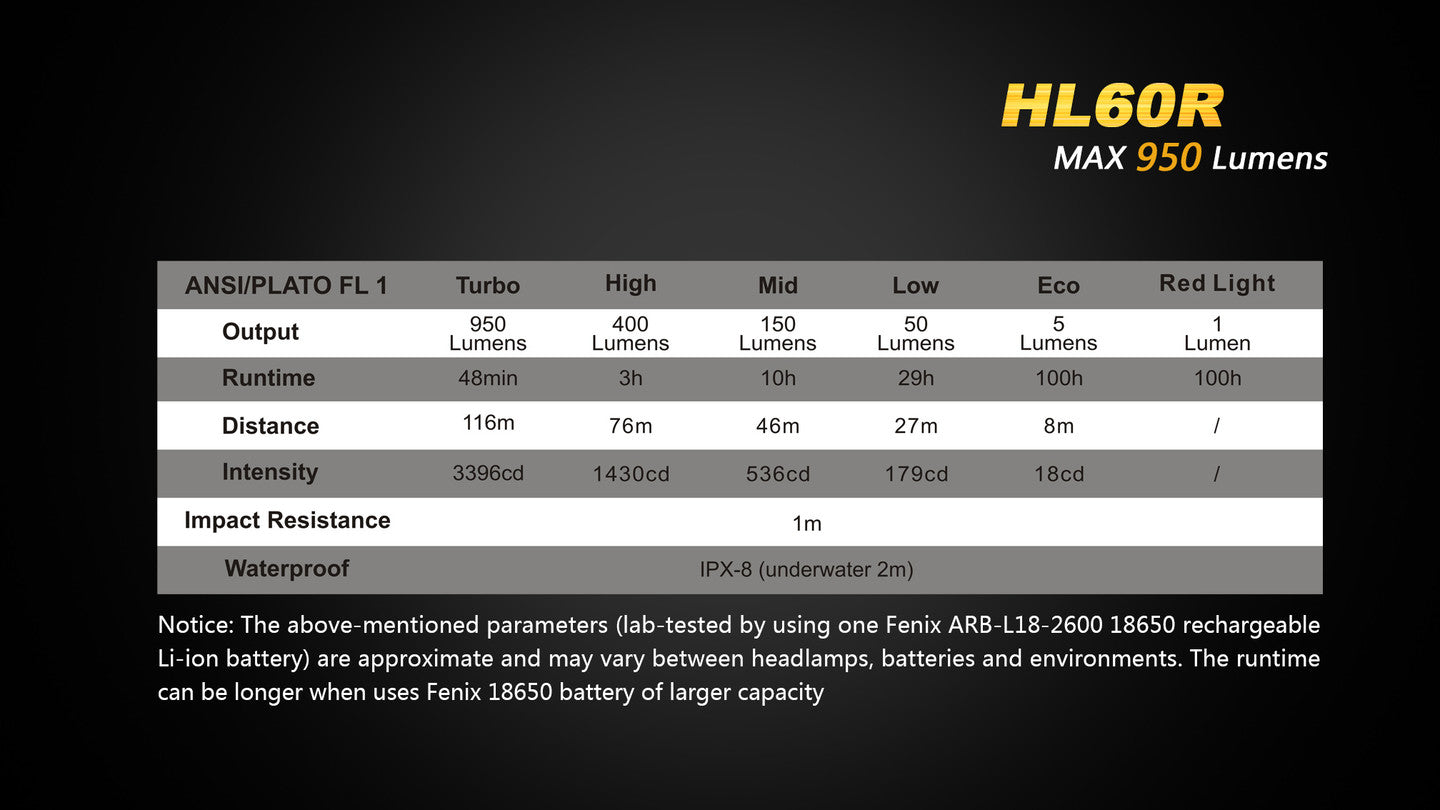

Specifications & Details

Item Details
Product Name Fenix HL60R USB Rechargeable Headlamp
Max Output 950 lumens
Max Beam Distance 116 m (381 ft)
Max Runtime 100 hours
Lighting Modes 5 white-light levels + red light (Turbo／High／Mid／Low／Eco + Red light)
Mode Cycle Order Turbo→Red light→Eco→Low→Mid→High
Emitter Luminus SST40 (50,000-hour lifespan)
Dimensions Length 87mm (3.4")｜Width 46mm (1.8")｜Height 51mm (2.0")
Weight 121g (4.3oz, without battery)
Power Source 1×18650 rechargeable Li-ion battery; also supports 2×CR123A batteries
Charging Micro-USB (charge after opening the dust cover)
Body Material / Finish Premium aluminum alloy; Premium Type III hard-anodized anti-abrasive finish
Lens Reinforced ultra-clear glass lens with anti-reflective coating

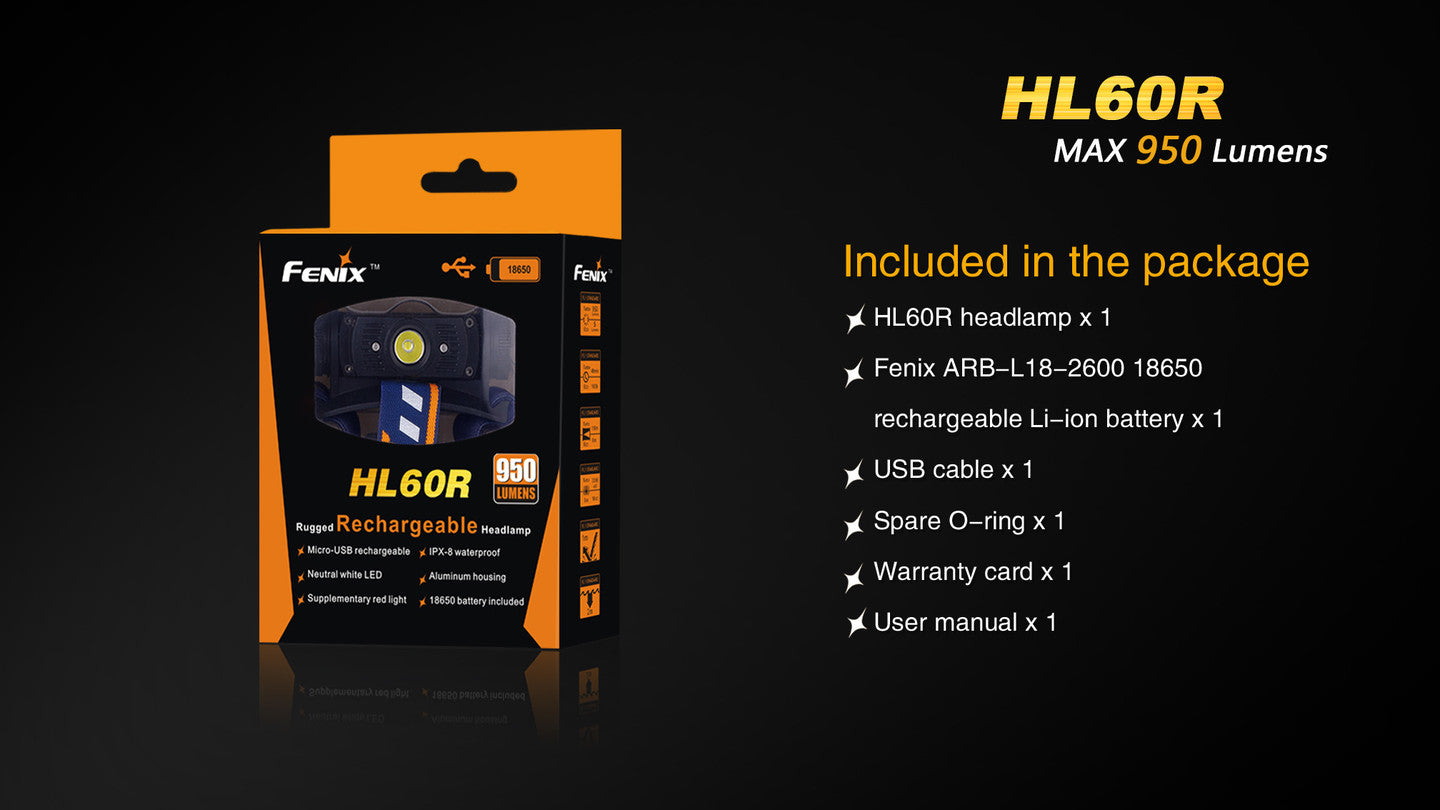

Included Accessories 2600mAh battery, Micro-USB charging cable, headband, headlamp strap, top strap holder, spare O-ring

Notes

  • After charging: Make sure the dust cover is properly closed after charging.
  • Storage: For stored headlamps, top up the battery once every four months to maintain battery performance.
  • Avoid disassembly: Disassembling sealed components may cause damage.
  • Waterproof sealing: O-rings may wear over time; use the included spare O-ring to maintain sealing performance.
  • Contact maintenance: If flickering, intermittent light, or failure to turn on occurs, it may be a battery/contact issue—clean contacts with an alcohol-dampened cotton swab.
