Fenix E03R Keychain Flashlight｜260 Lumens｜Up to 42m｜Type-C Charging｜Red Light／Red Flash｜IP66｜EDC／Keychain
Mini flashlight／keychain flashlight／keyring light: ideal for keeping on your keys long-term, making everyday lighting and emergency backup more convenient.

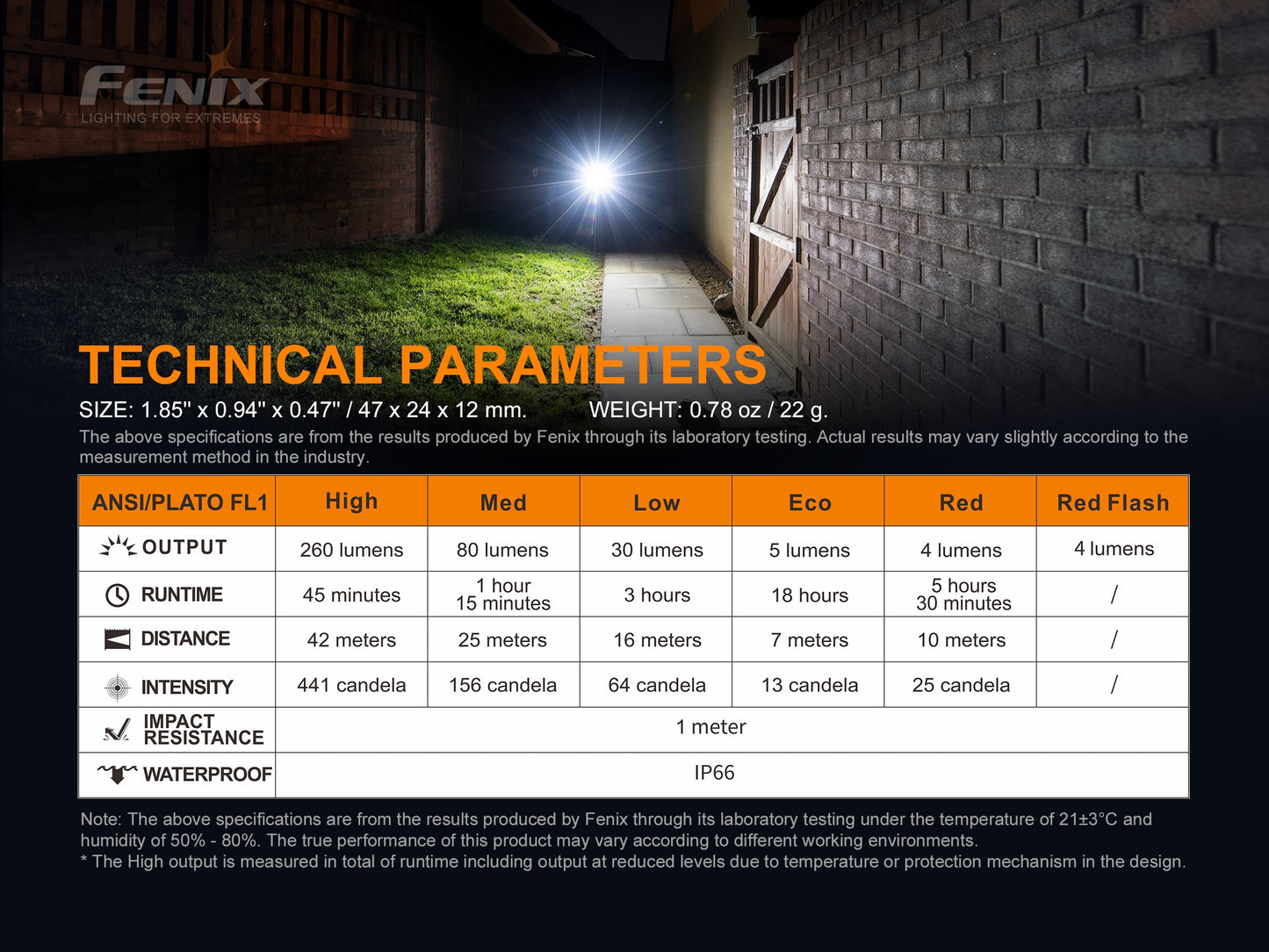

Max Output
260 Lumens
Max Beam Distance
42 m
Max Runtime
18 Hours
Charging
USB Type-C
Red Light
Red／Red Flash
Rating
IP66

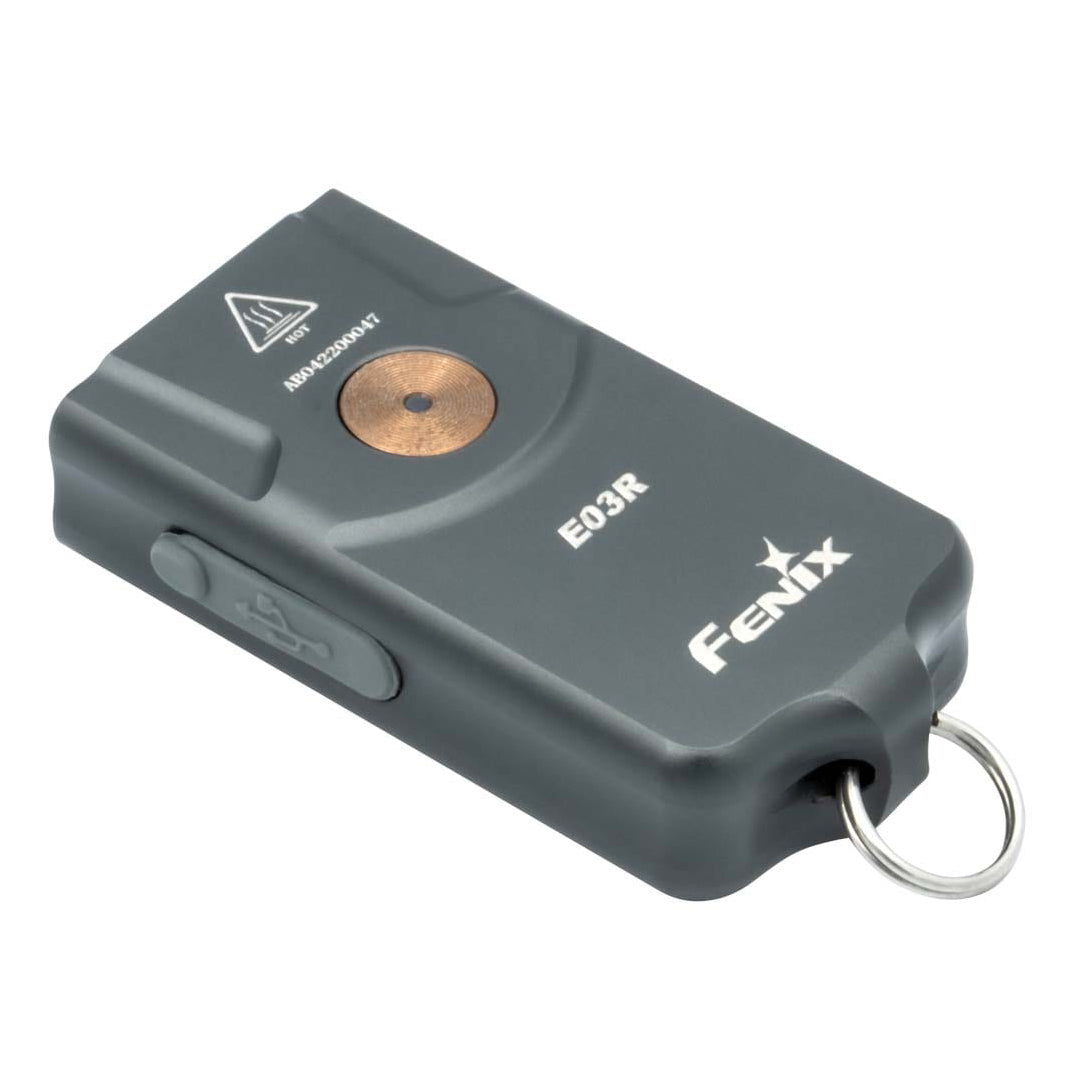

Fenix E03R is a rechargeable keychain flashlight (Keychain / mini EDC light). Under 2 inches long, it still delivers practical output and a complete feature set: up to 260 lumens with a max beam distance of 42m (138ft). Clip it to your keys, carry it in a pocket, or keep it in a work bag for everyday lighting and emergency backup.
The top button controls power and mode switching, offering 4 white-light levels plus red light and red flash (6 total lighting modes). A built-in 200mAh Li-polymer battery includes battery level indication and low-voltage warning, and recharges via a USB Type-C port. The body is all-metal CNC machined with a HAIII hard-anodized finish, rated IP66 dustproof and splash-resistant—built for high-frequency everyday carry.
Key Features
- 260 Lumens × 42m: Compact Size, Practical Output
Max output 260 lumens with a 42m (138ft) max distance—ideal for everyday lighting and emergency use. - 6 Modes: 4 White Levels + Red／Red Flash
White light cycles Eco／Low／Med／High; red light cycles between Red／Red Flash. - Type-C Charging: Built-in 200mAh for Convenience

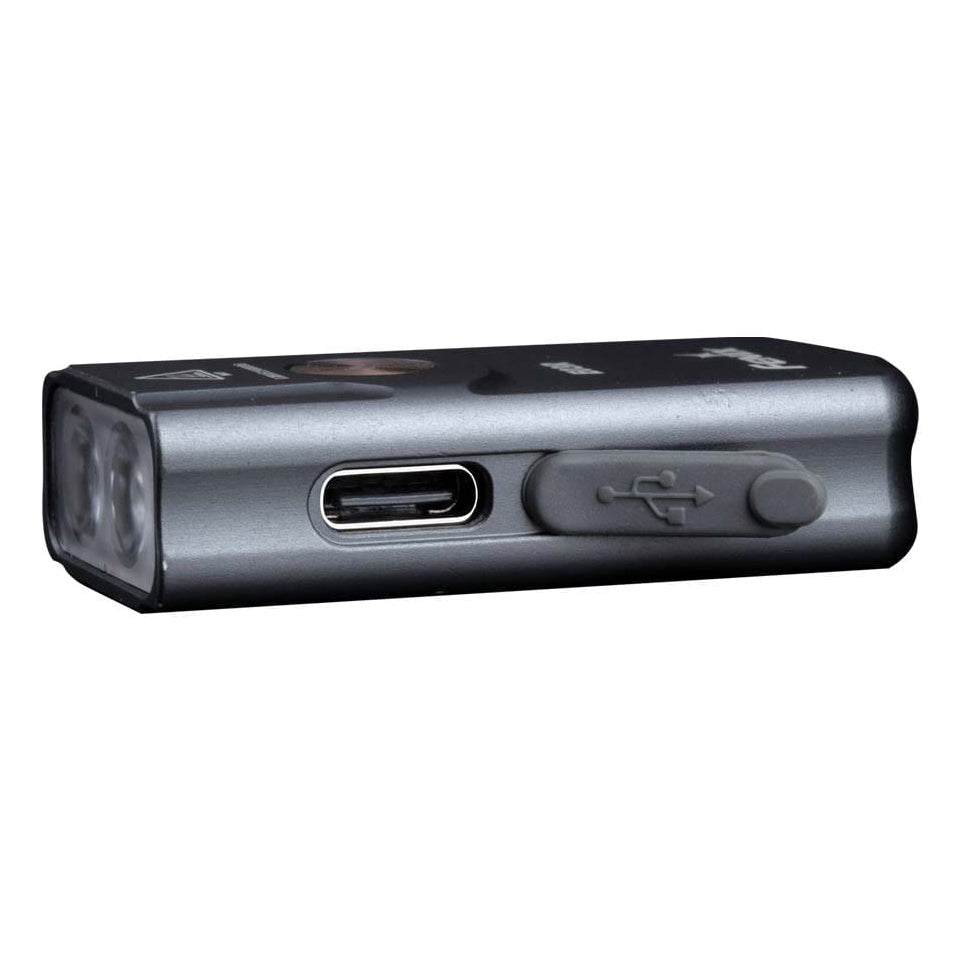

Built-in 200mAh Li-polymer battery charges via USB Type-C—no extra batteries or charger needed. - Battery Level Indicator + Low-Voltage Warning: Clear Power Status
Click once when off to check battery level; battery status also displays when turning on, with low-voltage warning included. - All-Metal CNC Body + HAIII Hard Anodizing: Built for Durability
All-metal CNC machined body with HAIII hard-anodized anti-abrasive finish for high-frequency daily use. - IP66 Dustproof & Splash-Resistant: Better for EDC
Rated IP66 for dustproof and splash resistance; keep the charging port cover properly closed to maintain protection. - Recessed Button + Lockout: Reduces Accidental Activation
Recessed button design plus lockout function for safer pocket carry and keyring use. - Intelligent Overheat Protection: Auto Stepdown on Extended High Output
During extended high-level use, the light automatically reduces output to lower temperature; reselect higher output if needed.

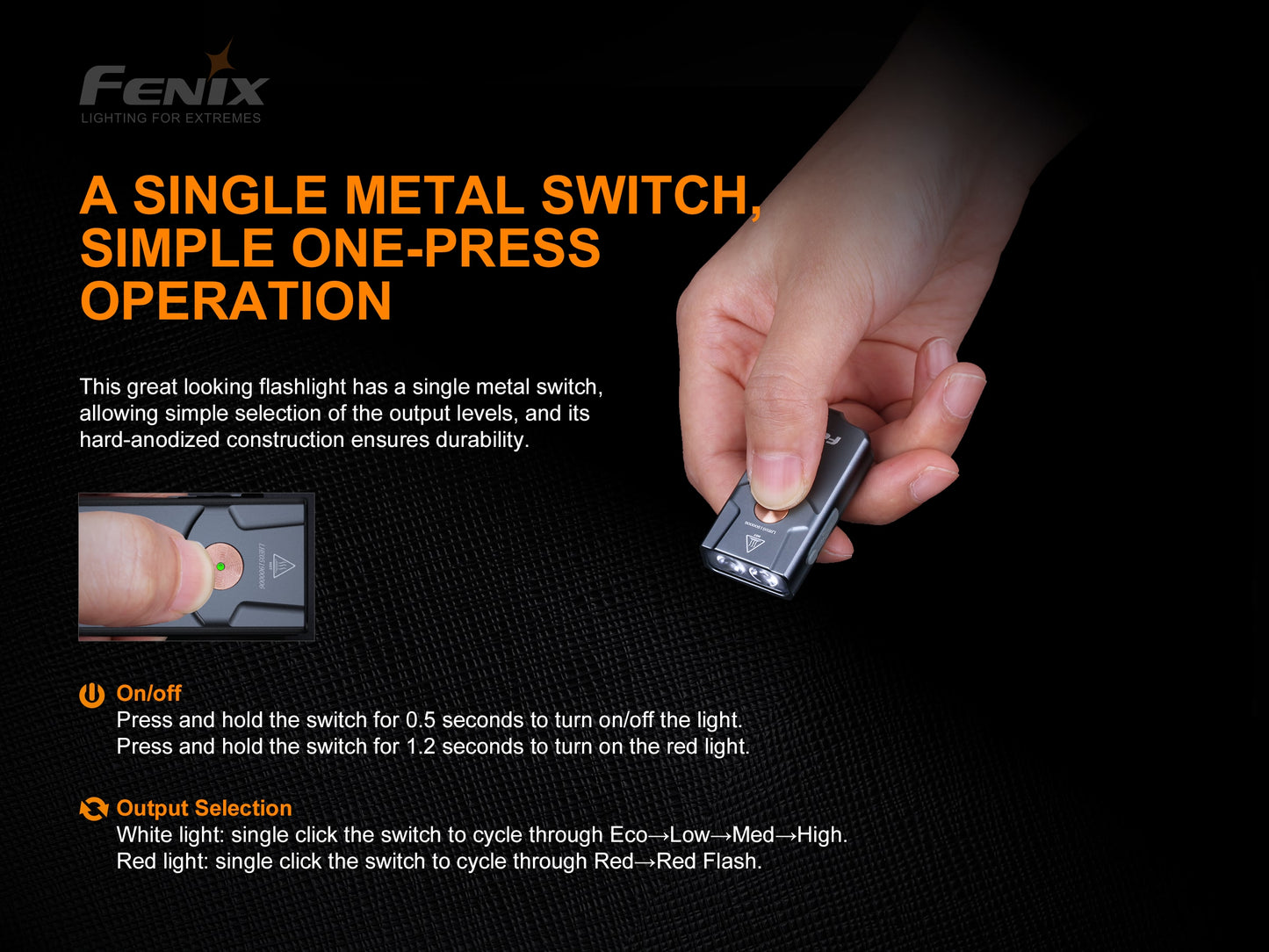

Quick Operation Guide
White Light On／Off: Press and hold 0.5s
Red Light On: Press and hold 1.2s
White Light Switching: Single-click to cycle Eco→Low→Med→High
Red Light Switching: Single-click to cycle Red→Red Flash
Lock: Double-click when off (Low flashes twice as confirmation)
Unlock: Double-click while locked (unlocks and starts in Low)
FAQ
Who is the E03R for, and what is it positioned for?
E03R is an all-metal keychain flashlight with a built-in 200mAh Li-polymer battery, up to 260 lumens and a 42m max distance. With Type-C charging and battery level display, it’s simple to operate for everyday EDC carry—and also a practical gift choice.
How do I turn on/off the white light? How do I turn on the red light?
Press and hold the button for 0.5s to turn white light on/off; press and hold for 1.2s to turn on red light.
How do I switch brightness and red light modes?
White light: single-click to cycle Eco→Low→Med→High.
Red light: single-click to cycle Red→Red Flash.
Red light: single-click to cycle Red→Red Flash.
How do I lock/unlock to prevent accidental activation?
Lock: double-click when off; the light flashes Low twice to indicate it’s locked.
Unlock: double-click while locked; the light unlocks and starts in Low. During lockout, pressing the button triggers two 1-second Low flashes to indicate lock status.
Unlock: double-click while locked; the light unlocks and starts in Low. During lockout, pressing the button triggers two 1-second Low flashes to indicate lock status.

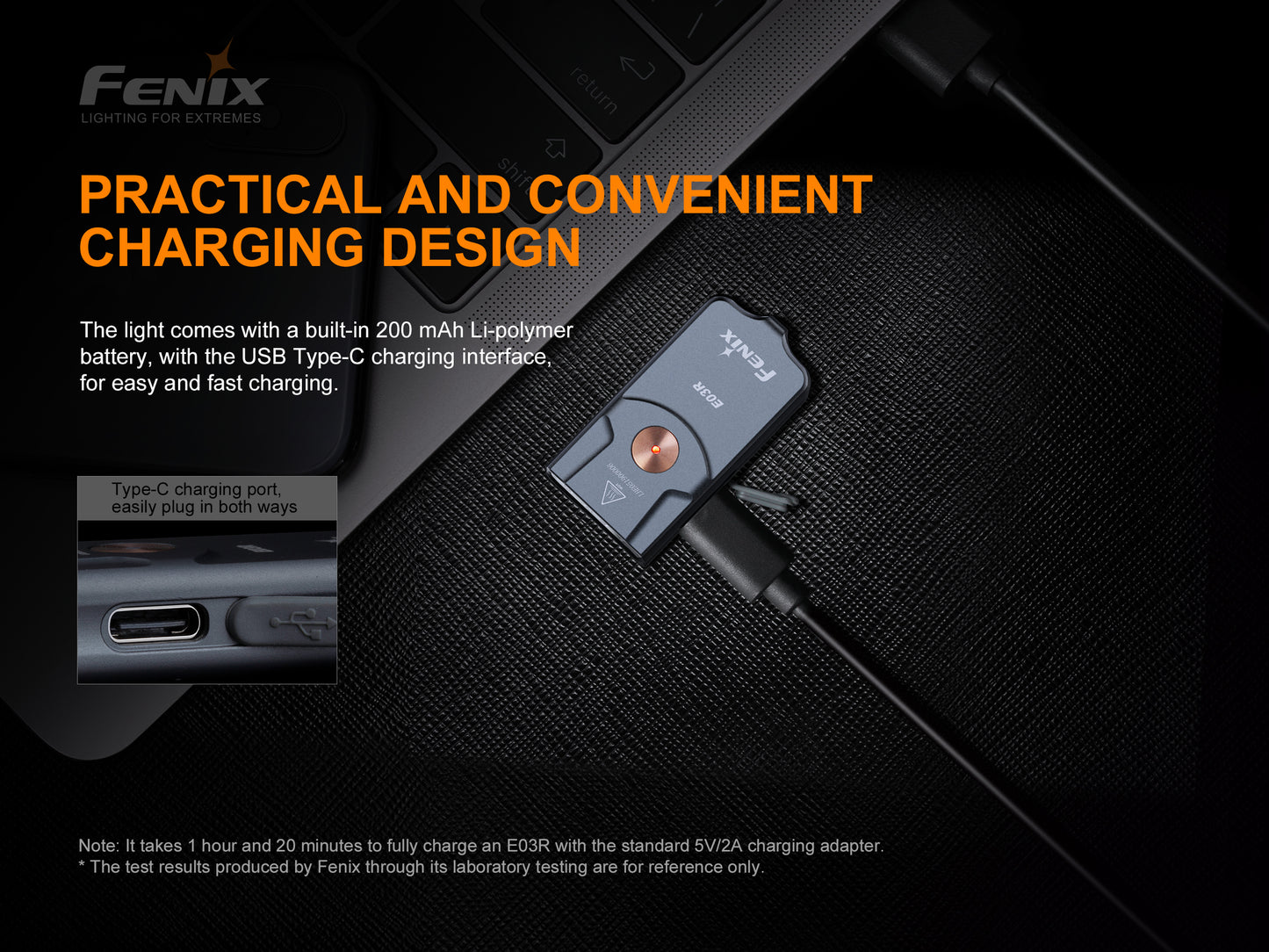

How do I charge it, and how long does it take?
Turn the light off first. Connect the USB-A end of the cable to a power source, then connect the USB Type-C end to the flashlight. Indicator shows red while charging and turns green when fully charged. From depleted to full takes about 1 hour 20 minutes. After charging, make sure the port cover is closed properly.
How do I read the battery indicator?
When off, single-click to display for 3 seconds:
Solid green: 100%–70%｜Flashing green: 70%–40%｜Solid red: 40%–10%｜Red flashing at 2Hz: 10%–1%.
Note: Battery status also displays each time the light is turned on.
Solid green: 100%–70%｜Flashing green: 70%–40%｜Solid red: 40%–10%｜Red flashing at 2Hz: 10%–1%.
Note: Battery status also displays each time the light is turned on.
Is the battery replaceable?
Built-in 200mAh Li-polymer battery (non-replaceable).
How is the water/dust protection?
Rated IP66 for dustproof and splash resistance; keep the charging port cover properly closed to maintain protection.
Suggested Use Cases
- EDC / Keychain: Keep it on your keyring for quick lighting, finding keyholes, or checking items in a bag.
- City commuting: Compact size makes it easy to carry in a pocket or work bag as a backup light.
- Home / car backup: Small footprint for flexible storage and fast access when needed.
- Gift option: A small flashlight is more likely to be carried daily—making it a practical gift.
Specifications & Details
Notes
- After charging, make sure the port cover is closed properly.
- For stored flashlights, recharge once every four months to maintain battery performance.
- Avoid shining the beam directly into anyone’s eyes (high-intensity light may cause eye injury).
